250LPH SS To 10000LPH SS RO Plant

Reverse Osmosis Plant is widely used for removal of dissolve chemical impurities from brackish & seawater. Reverse osmosis is the process of forcing a solvent from a region of high dissolve solids concentration through a membrane to a region of low dissolve solids concentration by applying a pressure in excess of the osmotic pressure.The semi permeable membranes used for reverse osmosis have a dense polymer barrier layer in which separation takes place.

Netrox's RO Plants are designed for a variety of industrial & commercial applications requiring high quality equipment with a fast delivery and competitive price. These pre-engineered, pre-assembled and factory tested units minimize installation and start-up time. With simple utility connections and easy to set up controls, the unit is ready for quick on-line service. The control system is an advanced microprocessor based system that is very easy to use.

Industrial Water Purifiers 250lph to 1000lph ro plant

Working Principal Of LPH RO

Reverse osmosis is water purification process in which pre-treated & filtered water is connected to the high-pressure pump where pressure is developed and fed to the RO membranes. Reverse Osmosis membranes work on the Cross flow Filtration method where the salts get rejected partially and deliver pure water. Purified water is referred to as product and waste water is referred to as concentrate or reject. The percent of water delivered as product is called the recovery. The ratio of recovery& output parameters depend upon the feed water quality, type of membrane, temperature and total RO unit design considerations.

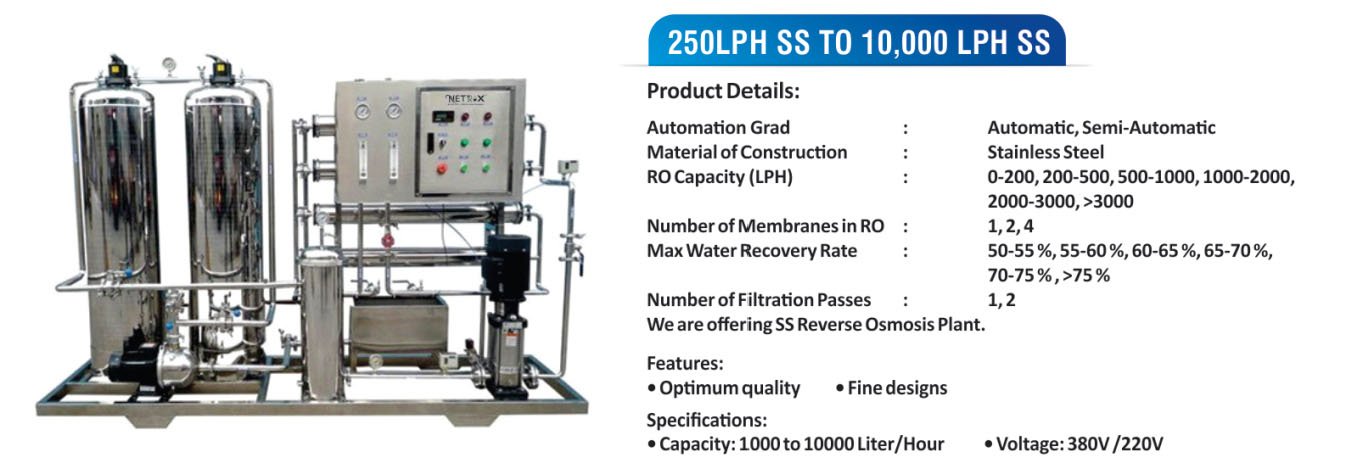

250LPH SS to 10,000 LPH SS

Automation Grad: Automatic, Semi-Automatic
Material of Construction: Stainless Steel
RO Capacity (LPH): 0-200, 200-500, 500-1000, 1000-2000, 2000-3000, >3000
Number of Membranes in RO: 1.2.4
Max Water Recovery Rate: 50-55%, 55-60%, 60-65%, 65-70%, 70-75%, >75%
Number of Filtration Passes: 1, 2
We are offering SS Reverse Osmosis Plant.
Features:
  1. Optimum Quality
  2. Fine Designs
Specifications:
  1. Capicity: 1000 to 10000 Liter/Hour
  2. Voltage: 380V/220V
