Mineral Bottling Plant

We offer mineral water bottling plant, bottling plant, water bottling plants, automatic bottle labeling machine, mineral water bottling plants and mineral water plant from India.

With rich industry knowledge, we are highly influential in presenting a premium quality Mineral Water Bottling Plant to compete with exact requirements of our clients. This bottling plant is used in numerous industries for solving drinking water issues. Due to the easy installation, our Mineral Water Bottling Plant is well known among our vast range of clients from across the country. Moreover, customers can purchase this plant from us at affordable prices within predefined time frame.

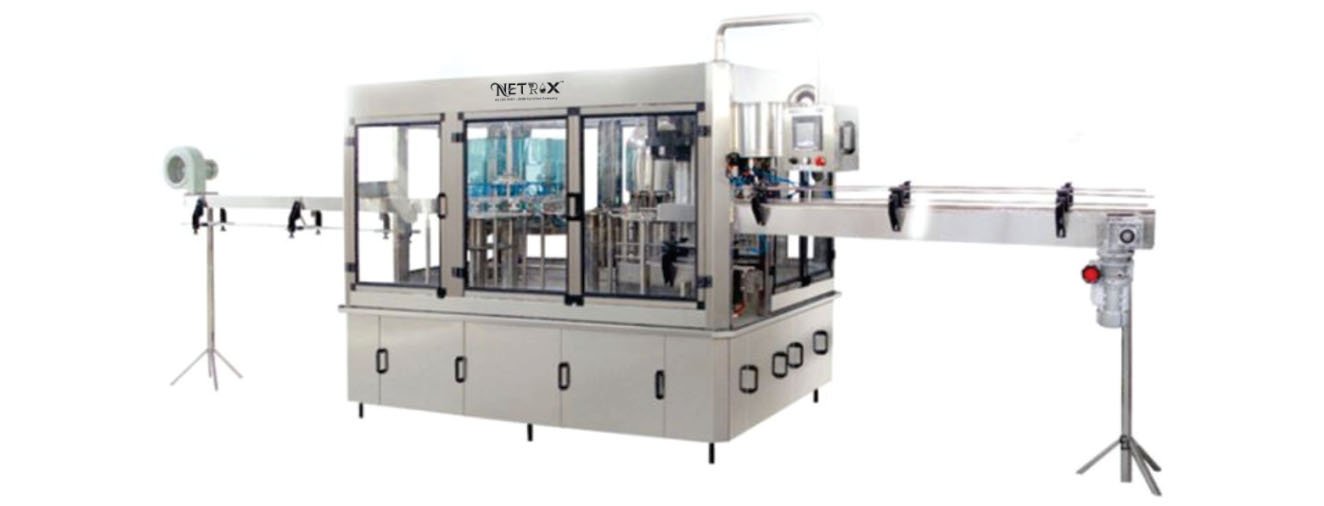

netrox miniral bottling plant

Working Principal Of Mineral Bottling Plant

The machine is having round Tank with 6 head filling. The filling valves are specially designed to fill water from 250 ml to 2000 ml. The machine is provided with 9 head rinsing nozzle with Nine set of catcher for holding bottle which also allows the bottle to get washed from inside. The machine is having 3 sets of special capper, which tightens the cap of any mentioned size. The machine is suitable for filling any type of liquid, which has free flow density. As this machine is complete mechanical operated no compressor is required. The machine is also provided with cap feeder, which has a capacity of approx 1800-2000 cap with U. V. Light system. The machine is provided with 6 feet Infeed Air Conveyor and 15 feet Outfeed motorized Conveyor for unloading the filled bottle with Inspection Board and Auto shrinking machine in line.

Mineral Bottling Plant

  • Easy to install
  • Ruggedness
  • Flawless design



Filling Head


Washing Head


Capping Head



40 BPM

Filling Range

250 ml -2000 ml

Suitable Cap shape

Plastic screw cap

Cap Feeder

1800 -2000 Cap Holding capacity

Air conveyor

6 feet

Slat Conveyor

15 feet

Air Blower

Main Motor

Filling Pump

Rinsing Pump

Conveyor Geared Motor

0.5HP, 2800 RPM

2 HP, 890 RPM, 440 VAC


0.50 HP, 220VAC

0.25 HP

P.N.P Sensor

Make: Hi-Technique

Inspection light

1 no.

Shrink Tunnel

9KW, 440VAC

Collection Table


Dimensions W X L X H (Feet)

6 X 6.5 X 7

Weight Approx.


If Intrested then please make a call for more custom details.
